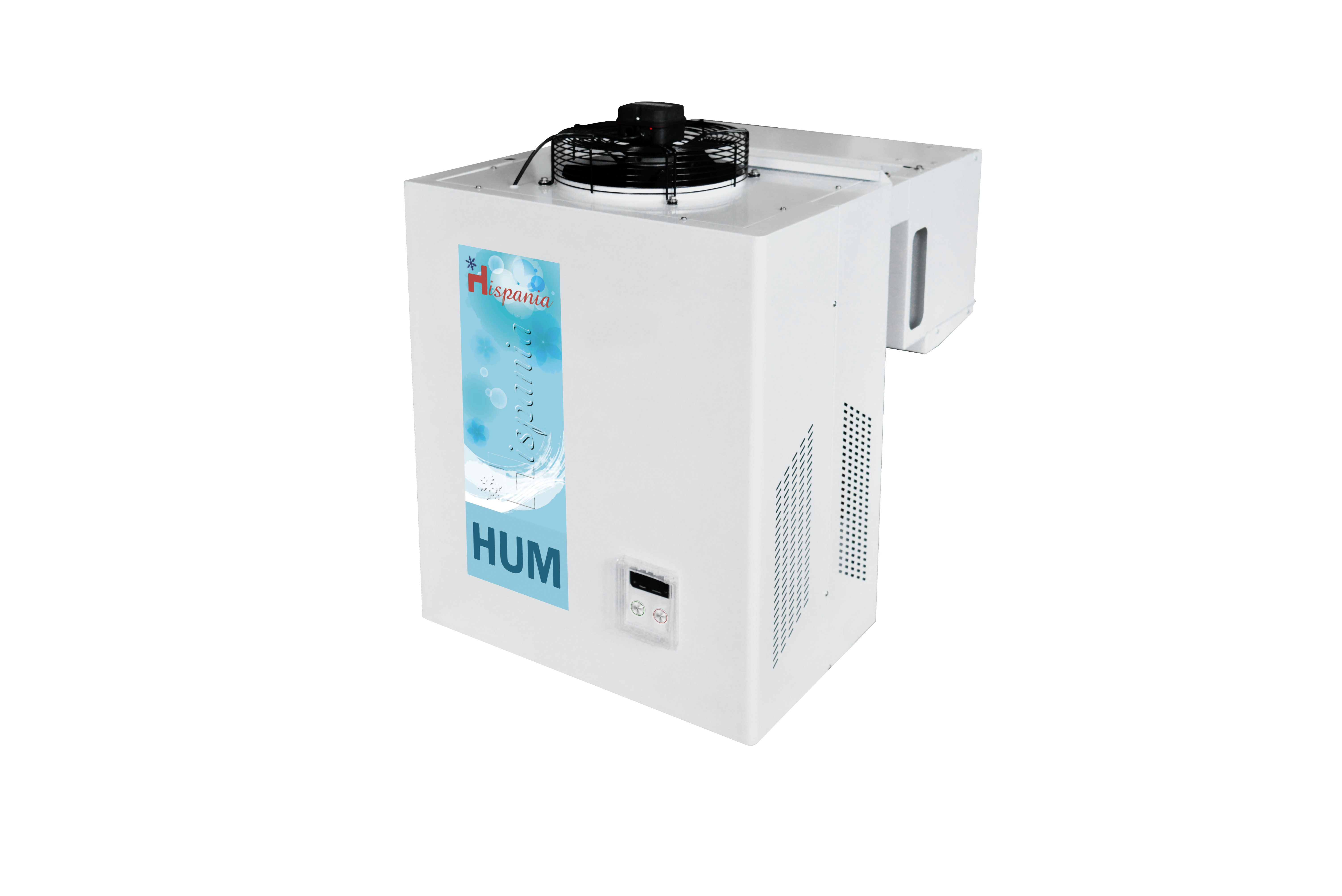

Monoblock
The exchange coils used in the HUM range are highly efficient with special profile aluminum fins and ø7 mm internally grooved tubes (condensers) and ø9.52 internally grooved tubes (evaporators), with a reduced internal volume to reduce the necessary refrigerant charge, meeting the needs of the different international regulations for the reduction of gases with high greenhouse effect. They are supplied clean and tested under a pressure of 30 bar.
Supported to the casing by means of a “floating” system that avoids any kind of contact between the copper tubes and the supporting end plates, assu- ring a long life for the condenser without leaks.
**MOC: Maximum operating current：The rated performances refer to operation at a room temperature between 0 ºC (MT) and -20 ºC (NT) and an outside temperature of 35 ºC. Estimated room volume according to the conditions of the calculation basis.
