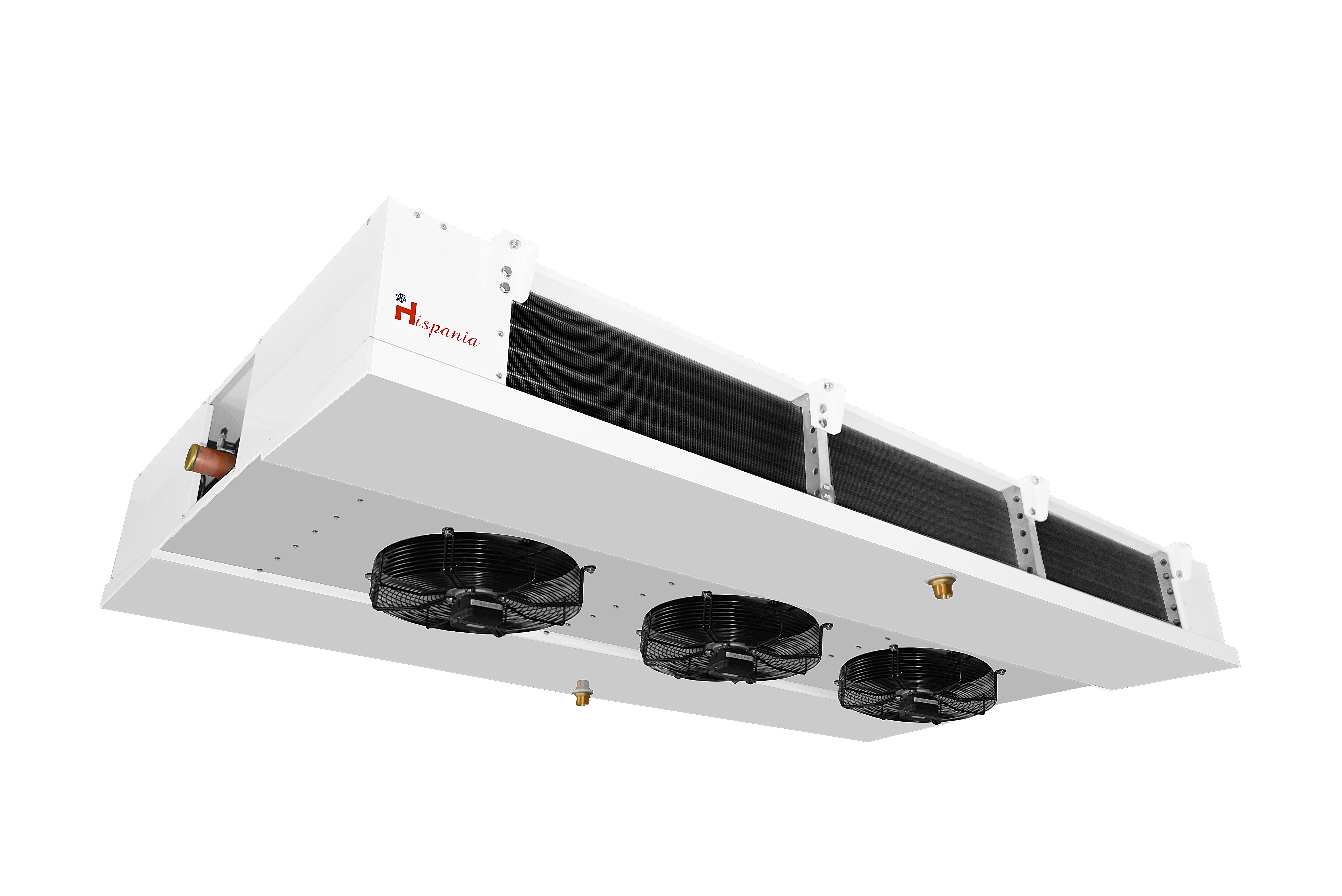

Dual Discharge Ceiling Air Type Evaporators

The AED range of compact-ceiling air type evaporators has been designed for use in low/medium height cold rooms for the preservation of fresh and frozen products and processing rooms as well.

The exchange coils used in the AED range are built with geometries of recognized high efficiency, with special profile aluminum fins and ø9.52 mm (AED 25XX) or ø12 mm (AED 35XX) internally grooved high quality copper tubes, with high heat transfer coefficient. They are supplied clean and tested under a pressure of 30 bar.

•Capacity: 1.24-23.18kw
•Fin Spacing: 4mm-4.5mm-6mm

Product Line

•White powder-coated aluminium casing with high resistance to corrosion and impacts.
•In models with electric defrost, stainless steel electric heaters covered by aluminum tubes are used, located in the finned package to avoid steam problems and makeeasyreplacement.
•The electrical parts are connected to an earth terminal, inside a connection box with access holes equipped with cable glands with IP 65 protection.
•For performance at work points other than those in this catalog, use the “Unit Selector Hybrid HISPANIA” software.
