Industrial Cubic Evaporators

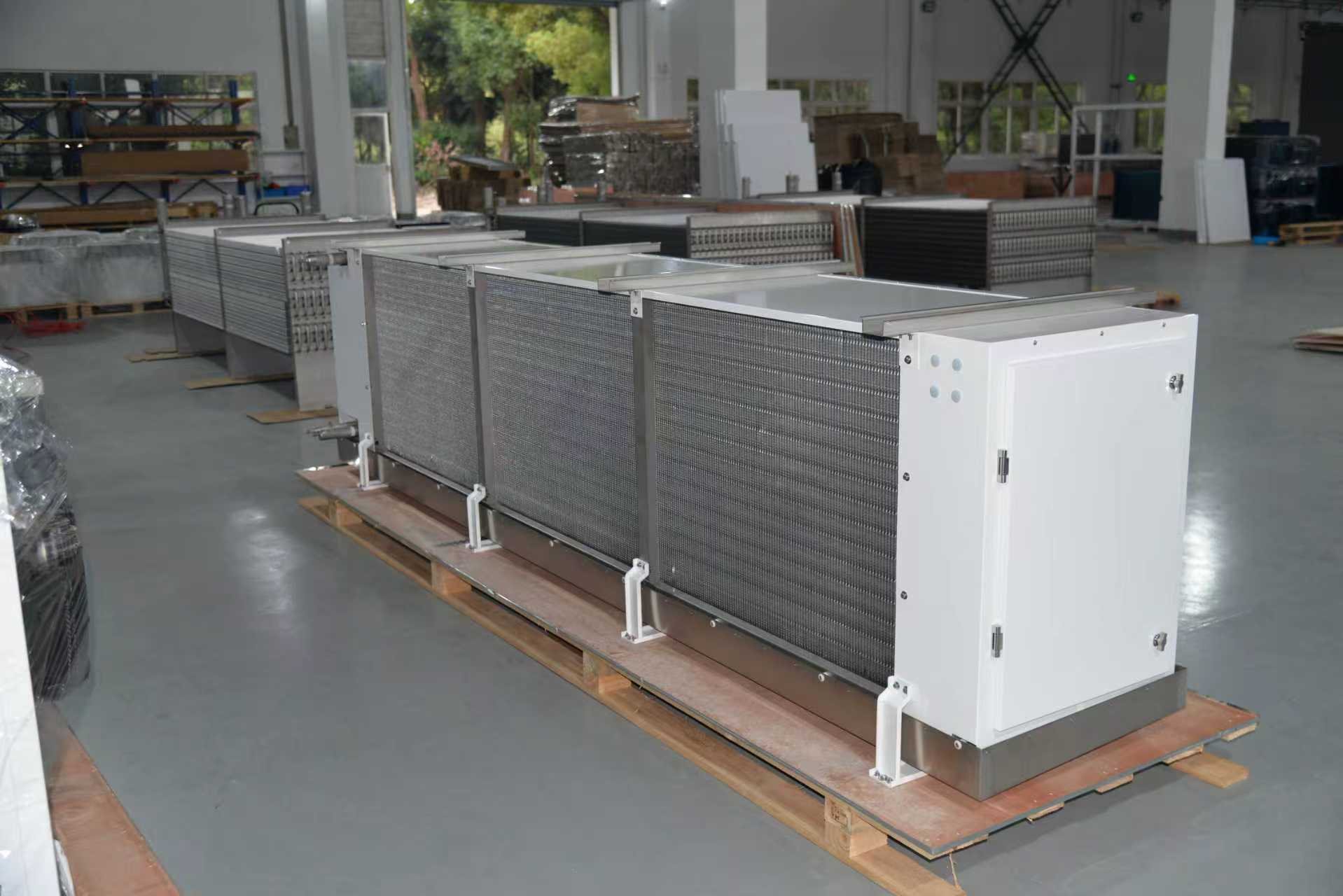

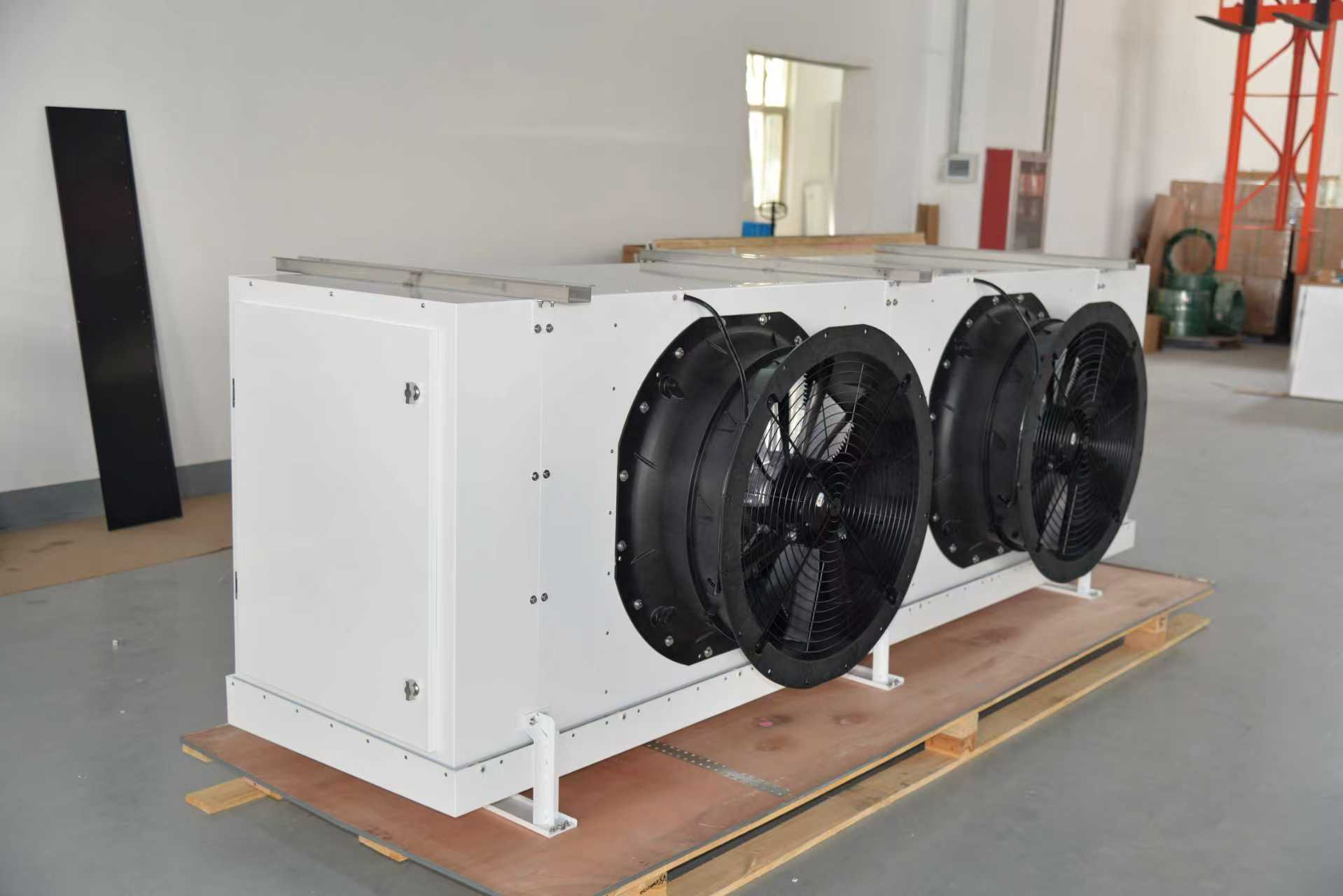

The NEB range of industrial cubic evaporators has been designed for use in big cold rooms for the preservation of fresh and frozen products.
The exchange coils used in the NEB range are highly
The exchange coils used in the NEB range are built with a geometry of recognized high efficiency, with special profile aluminum fins and ø15 mm high quality SS304 tubes, with high heat transfer coefficient. They are supplied clean and tested under a pressure of 30 bar.

•Capacity: 3.32-130.96kw
•Fin Spacing：4.5mm-7mm-10mm-12mm

Product Line

•White powder-coated aluminium casing with high resistance to corrosion and impacts.
•In models with electric defrost, stainless steel electric heaters covered by aluminum tubes are used, located in the finned package to avoid steam problems and makeeasyreplacement.
•The electrical parts are connected to an earth terminal, inside a connection box with access holes equipped with cable glands with IP 65 protection.
•For performance at work points other than those in this catalog, use the “Unit Selector Hybrid HISPANIA” software.
